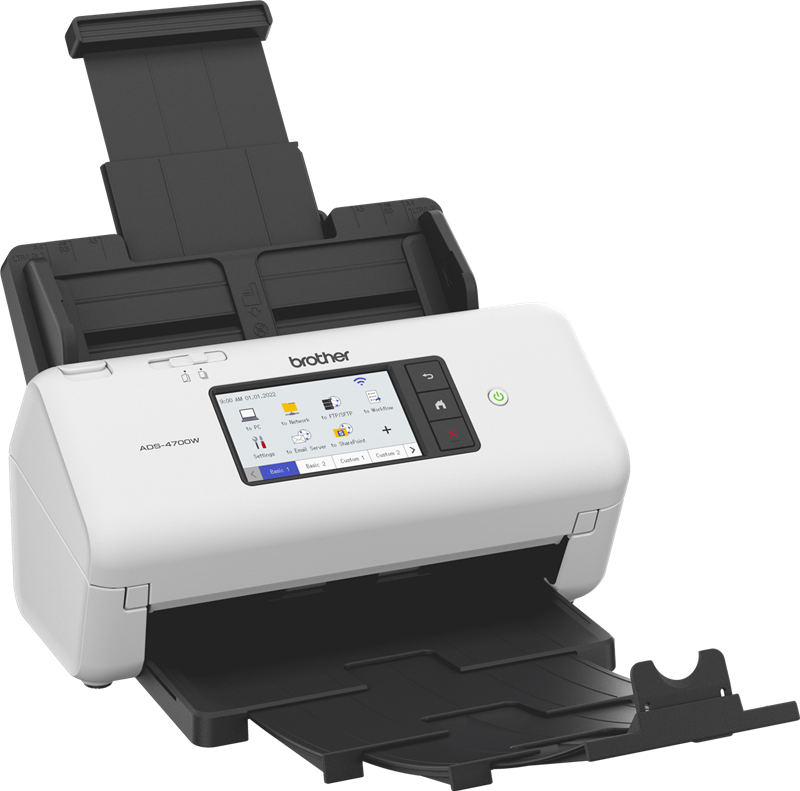

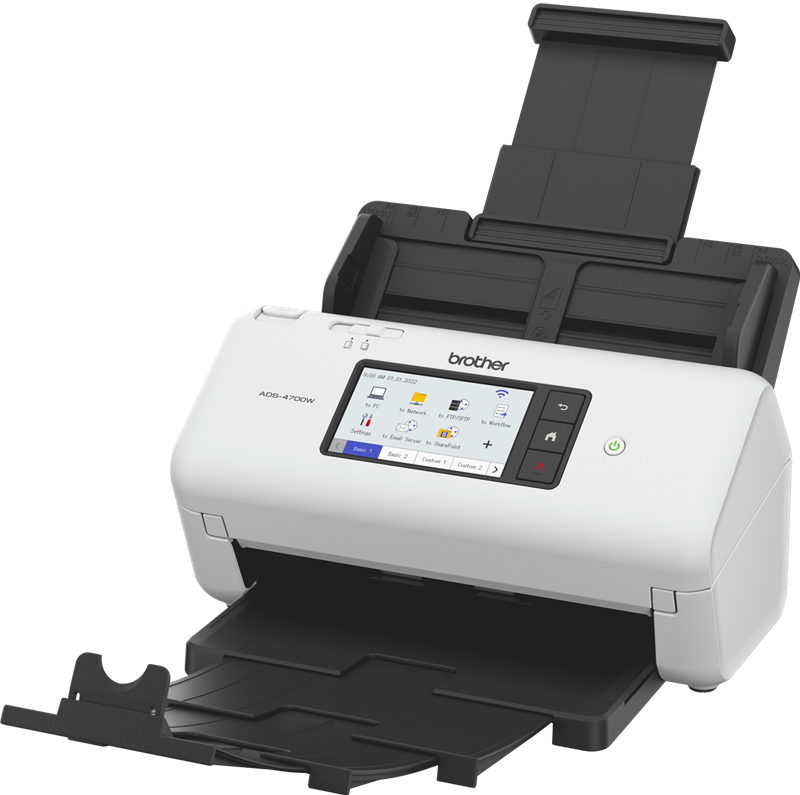

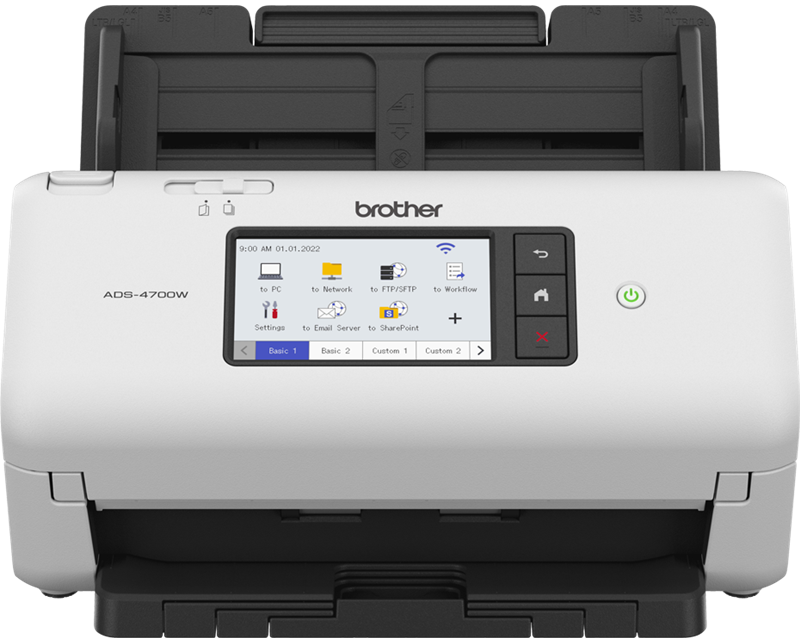

Brother Document Scanners

(ADS-4700W)
Brother ADS-4700WBrother ADS-4700WBrother ADS-4700WBrother ADS-4700W
Brother ADS-4700WBrother ADS-4700WBrother ADS-4700WBrother ADS-4700W
Brother

4.698,69 kr.

VAT incl., free shipping
directly from stock
Delivery time 1-2 days
add to basket
Brother ADS-4700W
Brother ADS-4700W
Brother ADS-4700W
Brother ADS-4700W

Product information "Brother Document Scanners"

Technical details
Harmonized System (HS) code
84716070
Certificates
certification
GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0
Operational conditions
Storage relative humidity (H-H)
10 - 90 %
Operating relative humidity (H-H)
20 - 80 %
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Server operating systems supported
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Packaging data
Package weight
3460 g
Package height
320 mm
Package depth
243 mm
Package width
391 mm
Quantity per pack
1 pc(s)
Weight & dimensions
Weight
2750 g
Height
190 mm
Depth
215 mm
Width
299 mm
Power
Auto power off
Yes
Output voltage
24 V
Output current
1.9 A
Power consumption (sleep)
1.7 W
Input voltage
100-240 V
Sleep mode
Yes
Power consumption (PowerSave)
1.7 W
AC input frequency
50 - 60 Hz
Power consumption (off)
0.1 W
Power consumption (standby)
8.6 W
Power consumption (typical)
26 W
Power supply type
AC
Network
Supported network protocols
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, ICMPv6
Security algorithms
WEP, WPA-PSK, WPA2-PSK, WPA3
Ethernet LAN
Yes
Wi-Fi standards
802.11b, 802.11g
Wi-Fi
Yes
Ports & interfaces
USB version
USB port
Yes
Paper handling
Maximum scan length
355.6 mm
Maximum scan width
215.9 mm
Paper tray media weight
40 - 200 g/m²
Card thickness (max)
1.32 mm
Media thickness (min)
0.08 mm
Legal
Yes
Long-paper mode
Yes
Scanning media types supported
Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size
A4
Input capacity
Auto document feeder (ADF) input capacity
80 sheets
Performance
Internal memory
512 MB
Scanning noise level
59 dB
Scan drivers
ISIS, TWAIN, WIA
Ultrasonic sensor
Yes
Scan to
PC
Maximum duty cycle
120000 pages per month
Daily duty cycle (max)
6000 pages
Scan file formats
JPEG, PDF, TIFF
Sensor type
Dual CIS
Design
Control type
Buttons
Colour display
Yes
Touchscreen
Yes
Display diagonal
4.3 "
Display
LCD
Product colour
Black, White
Built-in display
Yes
Scanner type
ADF + Sheet-fed scanner
Scanning
Duplex ADF scan speed (b/w, A4)
80 ipm
Duplex ADF scan speed (colour, A4)
80 ipm
ADF scan speed (colour, A4)
40 ppm
ADF scan speed (b/w, A4)
40 ppm
Greyscale levels
256
Output greyscale depth
8 bit
Output colour depth
24 bit
Input colour depth
48 bit
Duplex scanning
Yes
Colour scanning
Yes
Optical scanning resolution
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Maximum scan size
355.6 x 215.9 mm
All details without engagement. Data source: IceCat
